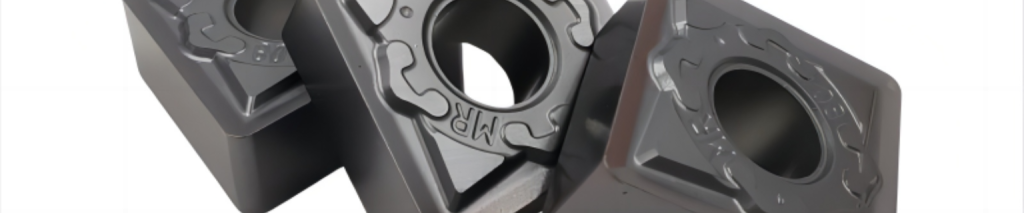

To determine if your carbide inserts are still in good condition, you should look for several key indicators. Here’s a step-by-step guide:
Visual Inspection
- Edge Condition: Check for any visible damage, such as chipped or broken cutting edges. A healthy carbide insert should have sharp, smooth edges without any significant nicks or cracks.
- Wear Pattern: Look for uniform wear across the cutting edge. Uneven wear or excessive rounding of the edge may indicate that the insert has reached the end of its useful life.
-
Surface Finish: Inspect the surface of the insert for signs of excessive wear or discoloration. Carbide inserts that are still in good condition should have a clean, smooth surface with minimal signs of thermal damage.
Check for Heat Damage
- Overheating can lead to thermal cracking or discoloration. If the carbide insert shows signs of blueing (indicating heat exposure) or any thermal cracking, it’s time to replace it.
Cutting Performance
- Surface Finish Quality: If you’re noticing a deterioration in the surface finish of your workpiece (e.g., rougher surfaces or poor cut quality), it may be due to insert wear.
- Cutting Force: Increased cutting forces or vibrations during machining may suggest that the insert is no longer performing optimally.
- Tool Life:Compare the tool’s performance to the manufacturer’s recommended lifespan. If the insert has exceeded its expected number of cuts or hours of operation, it may no longer be effective.
Geometry Deviation
- Check if the insert’s geometry has deviated significantly from the original design. This could be due to excessive wear or breakage, affecting the insert’s cutting precision.
Sound and Vibration
- Listen for any unusual sounds or excessive vibrations during machining. A well-maintained insert typically produces a steady cutting sound. If the cutting sound changes dramatically, it could indicate insert wear.
Micrometer Measurement
- For precision, use a micrometer to measure the thickness or height of the cutting edge. If the measurements deviate from the original specifications, the insert is likely worn out.
If your carbide insert shows any of these signs of wear, it’s best to replace it to ensure optimal cutting performance and protect the workpiece from damage. Regularly inspecting and maintaining inserts will help maximize tool life and improve machining efficiency.
