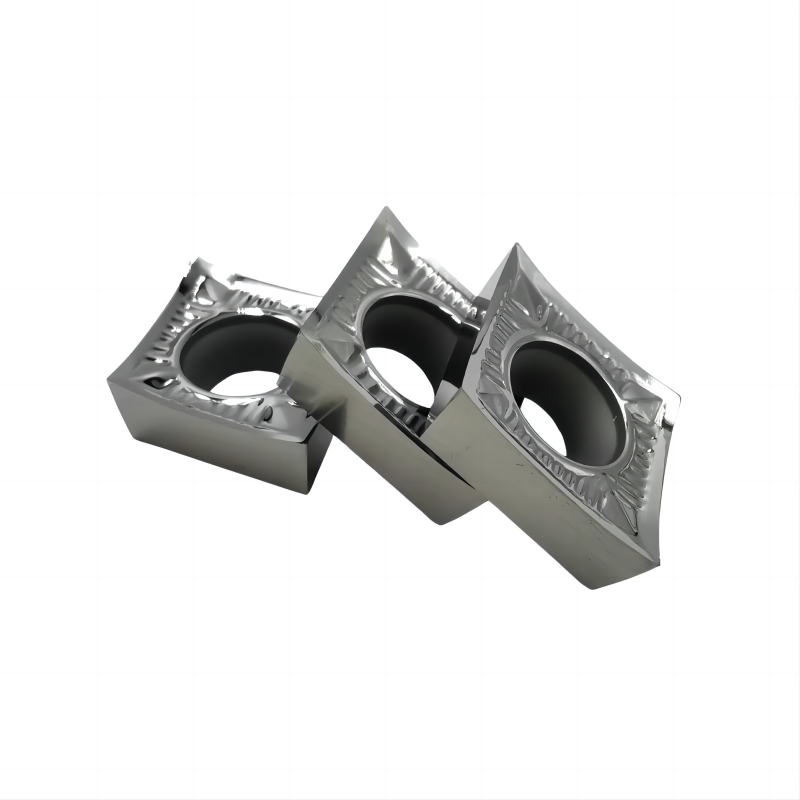

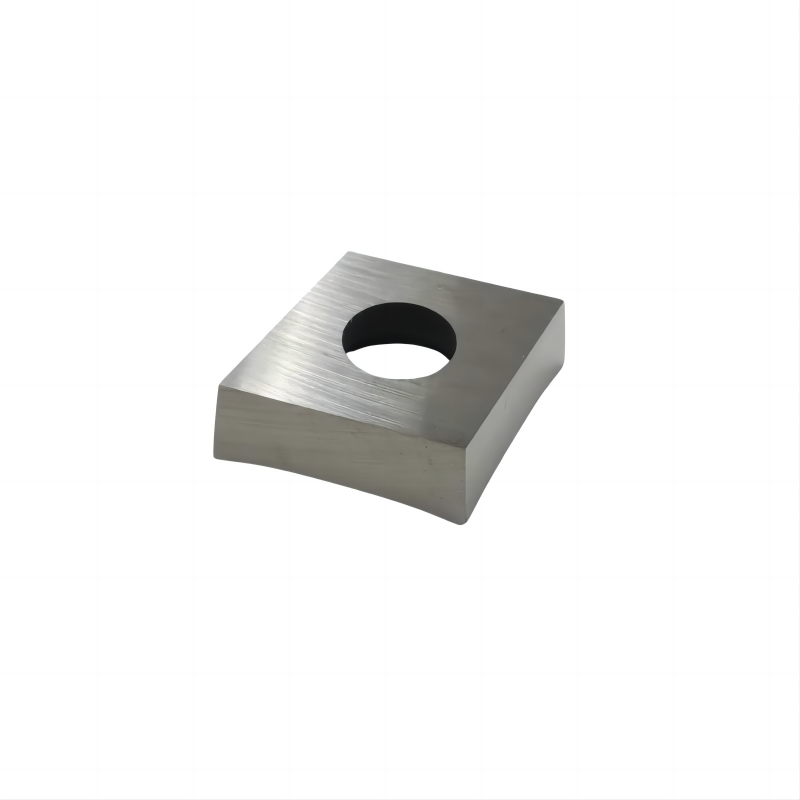

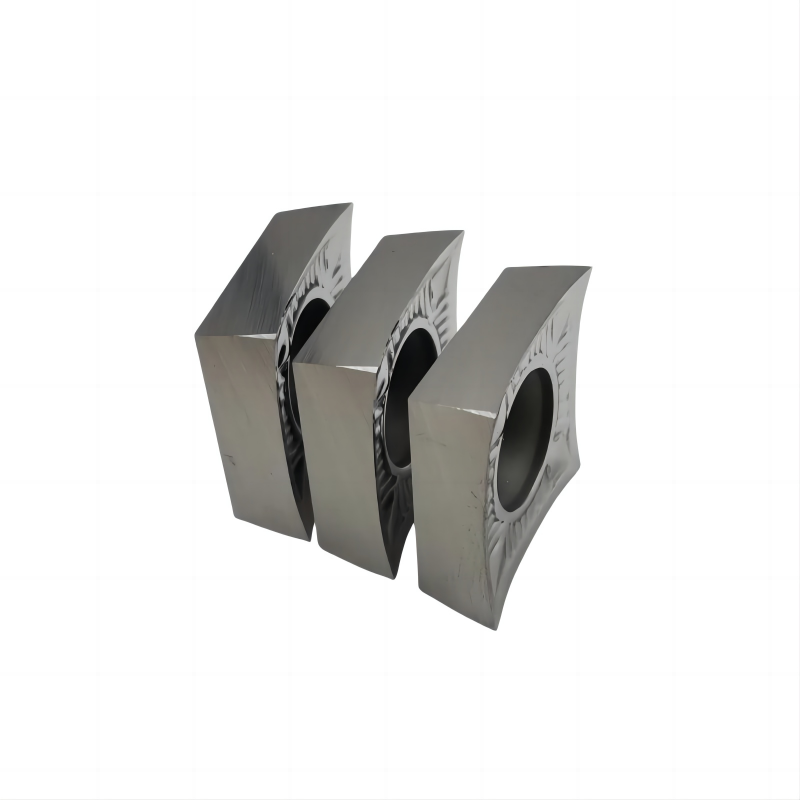

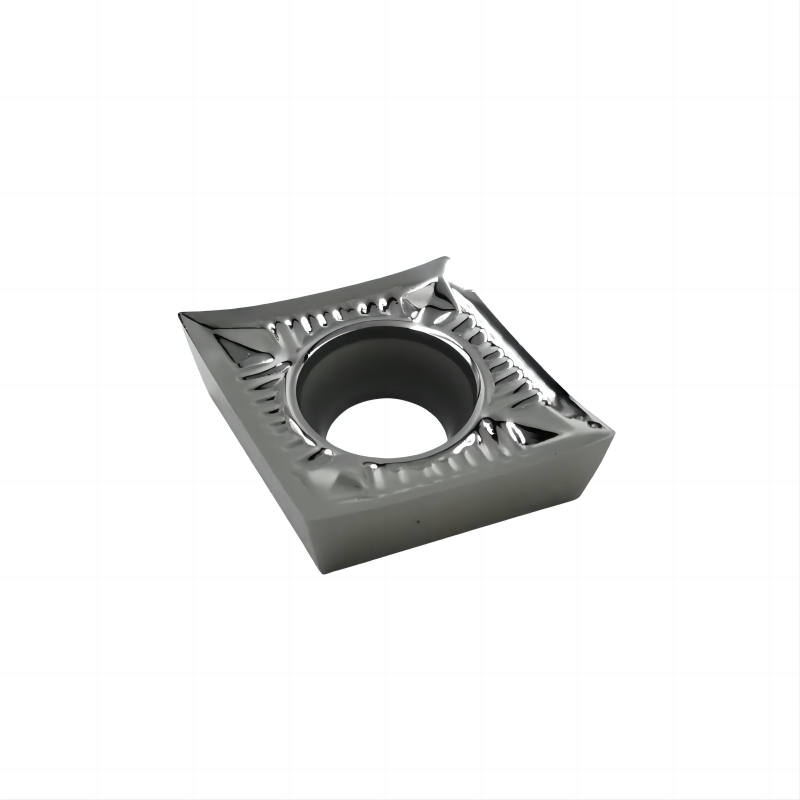

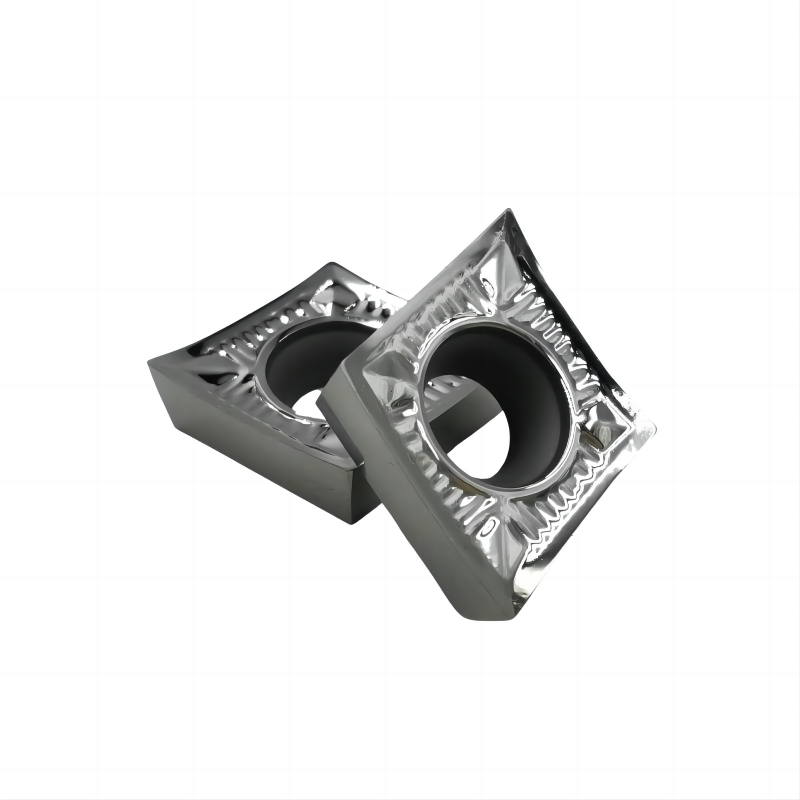

CCGT CARBIDE INSERTS

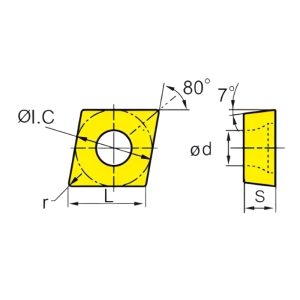

Type | L | φ I.C | S | φ d | r |
CCGT060202-AK | 6.4 | 6.35 | 2.38 | 2.8 | 0.2 |
CCGT060204-AK | 6.4 | 6.35 | 2.38 | 2.8 | 0.4 |
CCGT060208-AK | 6.4 | 6.35 | 2.38 | 2.8 | 0.8 |
CCGT09T302-AK | 9.7 | 9.525 | 3.97 | 4.4 | 0.2 |
CCGT09T304-AK | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
CCGT09T308-AK | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
CCGT09T312-AK | 9.7 | 9.525 | 3.97 | 4.4 | 1.2 |
CCGT120404-AK | 12.9 | 12.7 | 4.76 | 5.56 | 0.4 |
CCGT120408-AK | 12.9 | 12.7 | 4.76 | 5.56 | 0.8 |
CCGT120412-AK | 12.9 | 12.7 | 4.76 | 5.56 | 1.2 |
