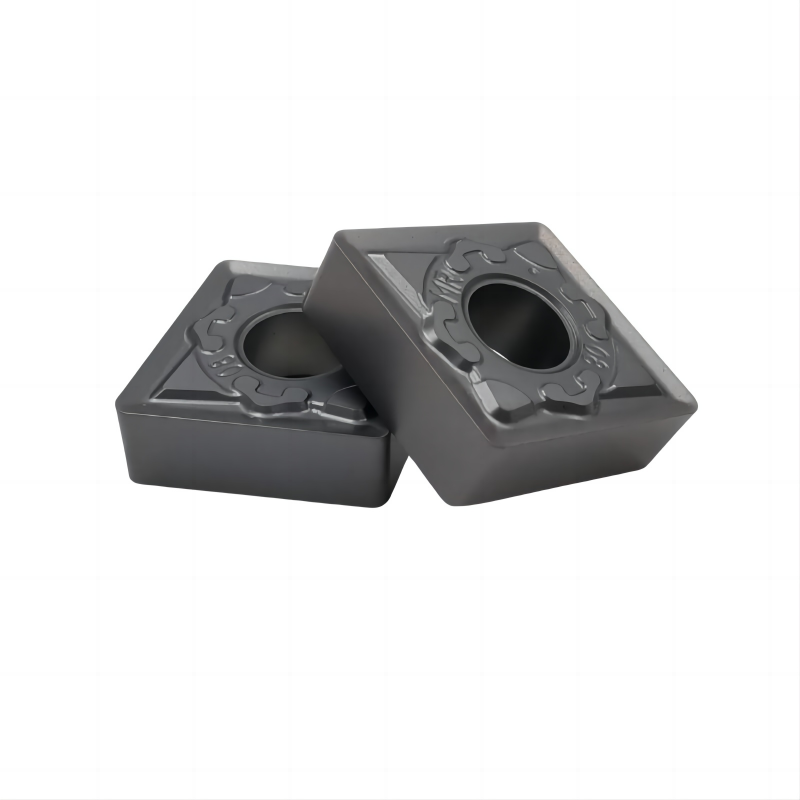

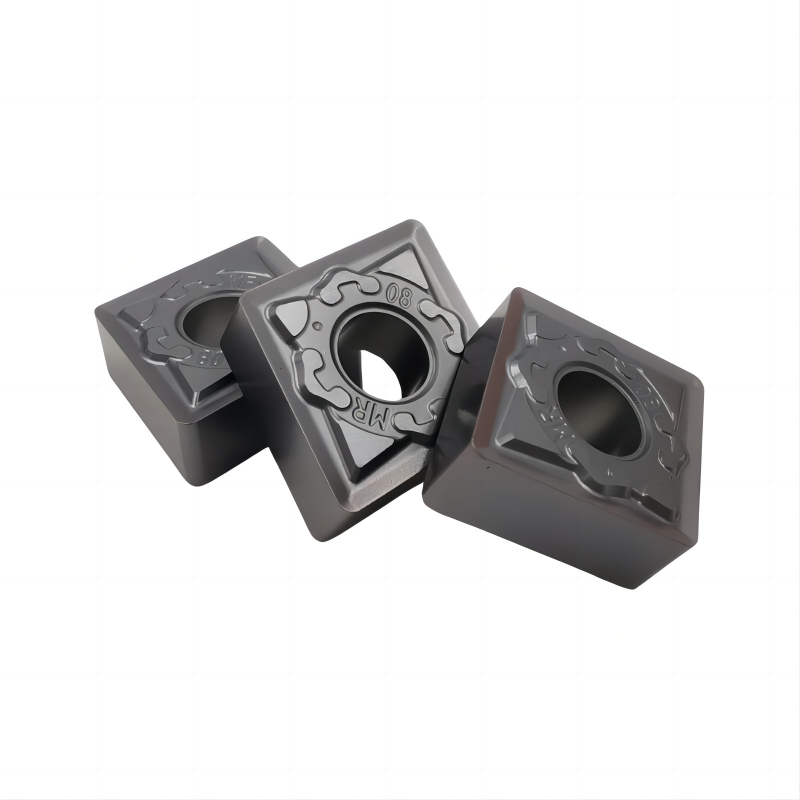

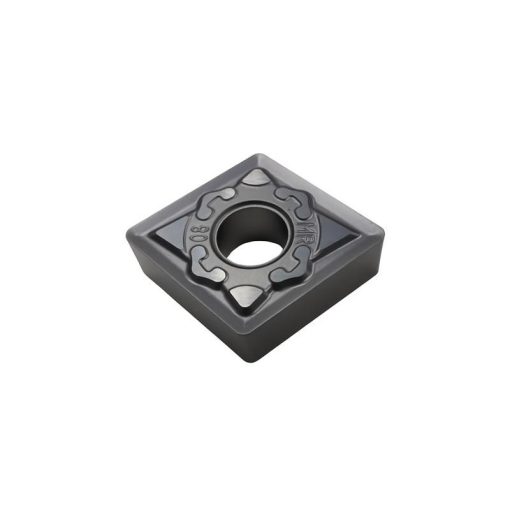

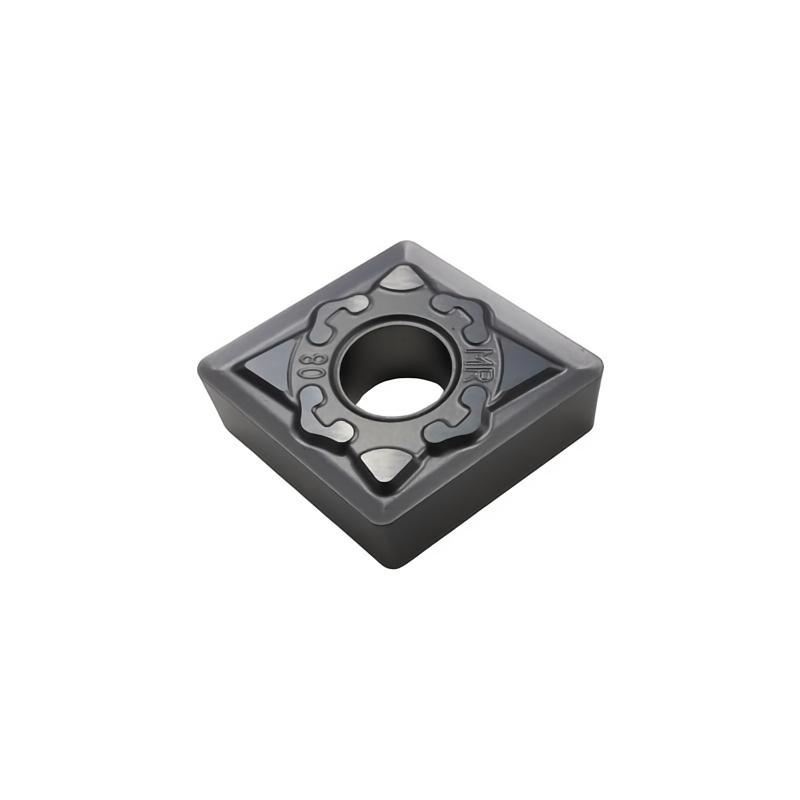

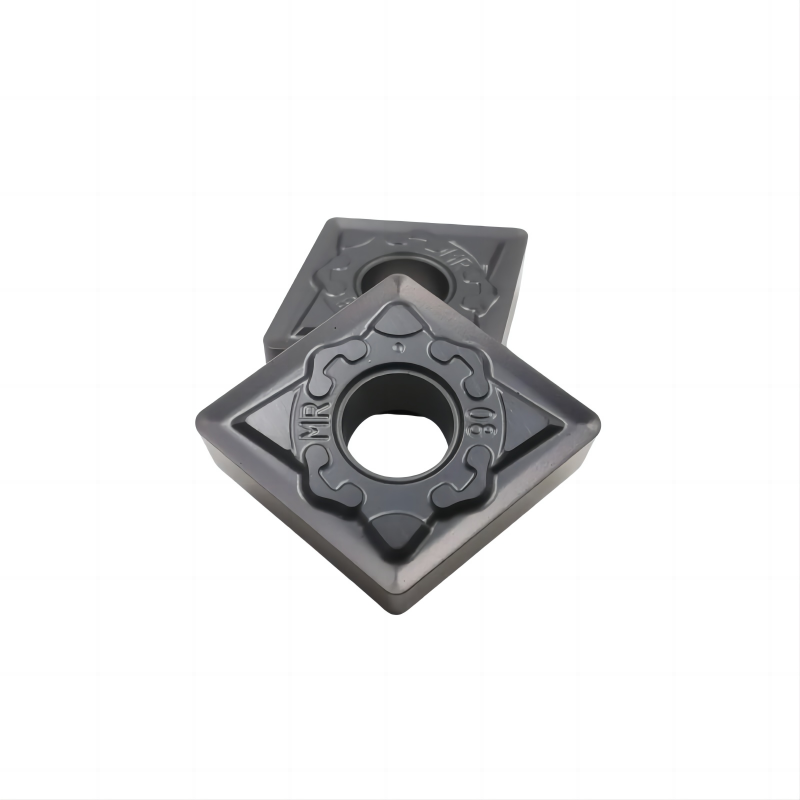

CNMG CARBIDE INSERTS

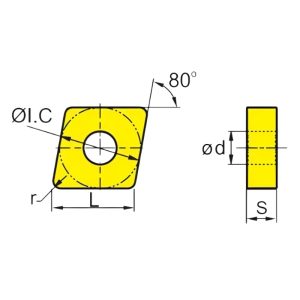

Type | L | φ I.C | S | φ d | r |
CNMG090304-BTM | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
CNMG090308-BTM | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
CNMG120404-BTM | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-BTM | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-BTM | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120416-BTM | 12.9 | 12.7 | 4.76 | 5.16 | 1.6 |
CNMG160608-BTM | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
CNMG160612-BTM | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
CNMG160616-BTM | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
CNMG120404-BMA | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-BMA | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-BMA | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120404R-S | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408R-S | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412R-S | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120404L-S | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408L-S | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412L-S | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120404-MS | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-MS | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-MS | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120404-MF3 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-MF3 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG090304-MM | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
CNMG090308-MM | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
CNMG120404-MM | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-MM | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-MM | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120416-MM | 12.9 | 12.7 | 4.76 | 5.16 | 1.6 |
CNMG160608-MM | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
CNMG160612-MM | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
CNMG160616-MM | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
CNMG120404-BM | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-BM | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-BM | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG160608-BM | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
CNMG160612-BM | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
CNMG160616-BM | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
CNMG120404-MR | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408-MR | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412-MR | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG120404 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
CNMG120408 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
CNMG120412 | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
CNMG160608 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 |
CNMG160612 | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 |
CNMG160616 | 16.1 | 15.875 | 6.35 | 6.35 | 1.6 |
