SPMG CARBIDE INSERTS

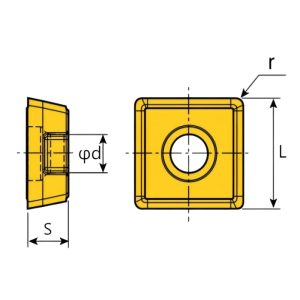

Type | L | S | r | φ d |
SPMG050204-DG | 5.00 | 2.38 | 0.40 | 2.25 |
SPMG060204-DG | 6.00 | 2.38 | 0.40 | 2.61 |
SPMG07T308-DG | 7.94 | 3.97 | 0.80 | 2.85 |
SPMG090408-DG | 9.80 | 4.30 | 0.80 | 4.05 |
SPMG110408-DG | 11.50 | 4.80 | 0.80 | 4.45 |
SPMG140512-DG | 14.30 | 5.20 | 1.20 | 5.75 |
Type | L | S | r | φ d |
SPMG050204-DG | 5.00 | 2.38 | 0.40 | 2.25 |
SPMG060204-DG | 6.00 | 2.38 | 0.40 | 2.61 |
SPMG07T308-DG | 7.94 | 3.97 | 0.80 | 2.85 |
SPMG090408-DG | 9.80 | 4.30 | 0.80 | 4.05 |
SPMG110408-DG | 11.50 | 4.80 | 0.80 | 4.45 |
SPMG140512-DG | 14.30 | 5.20 | 1.20 | 5.75 |
