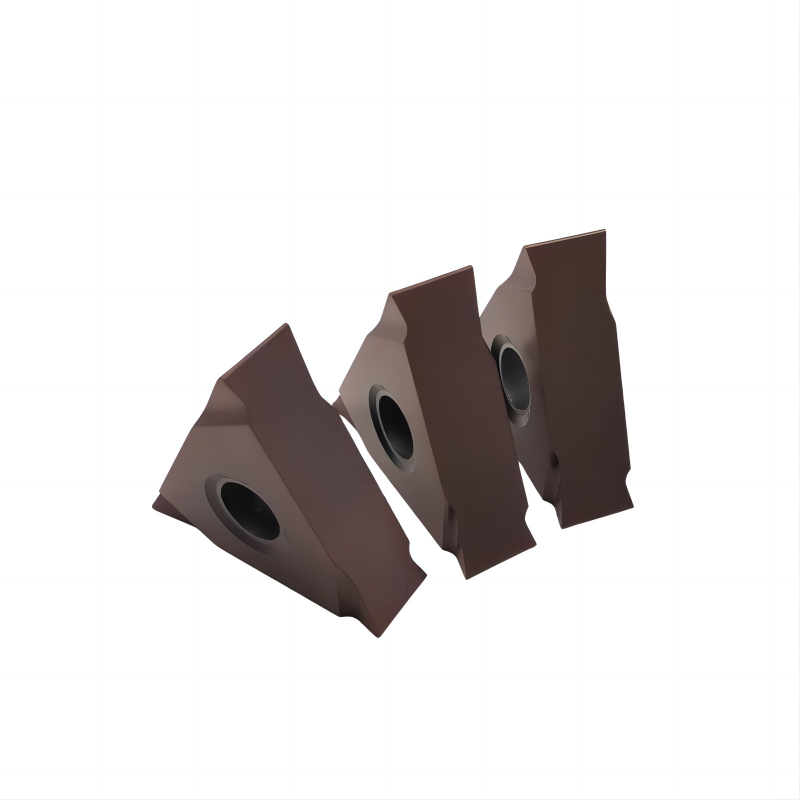

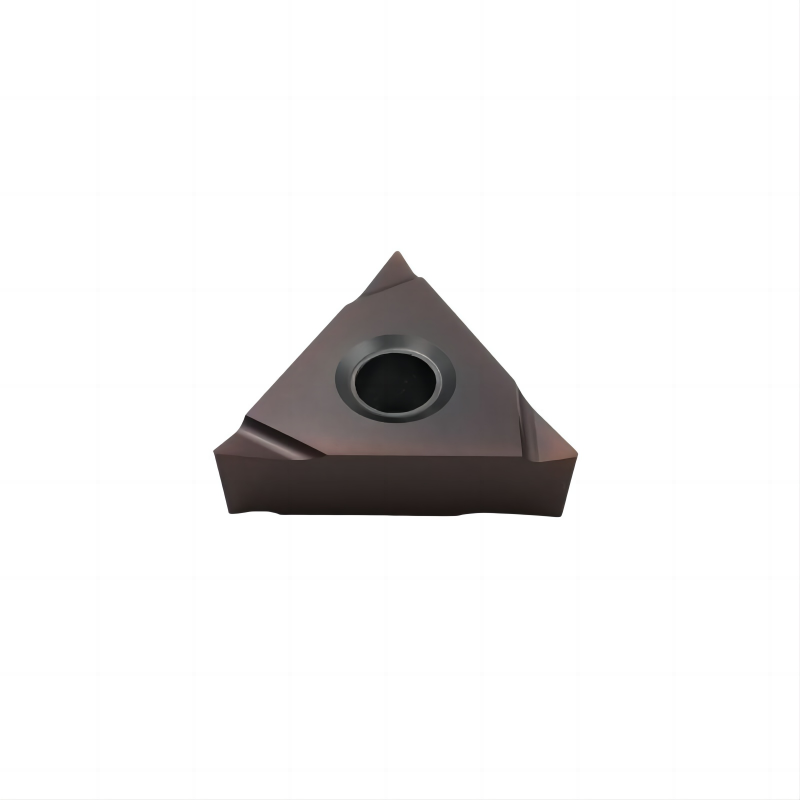

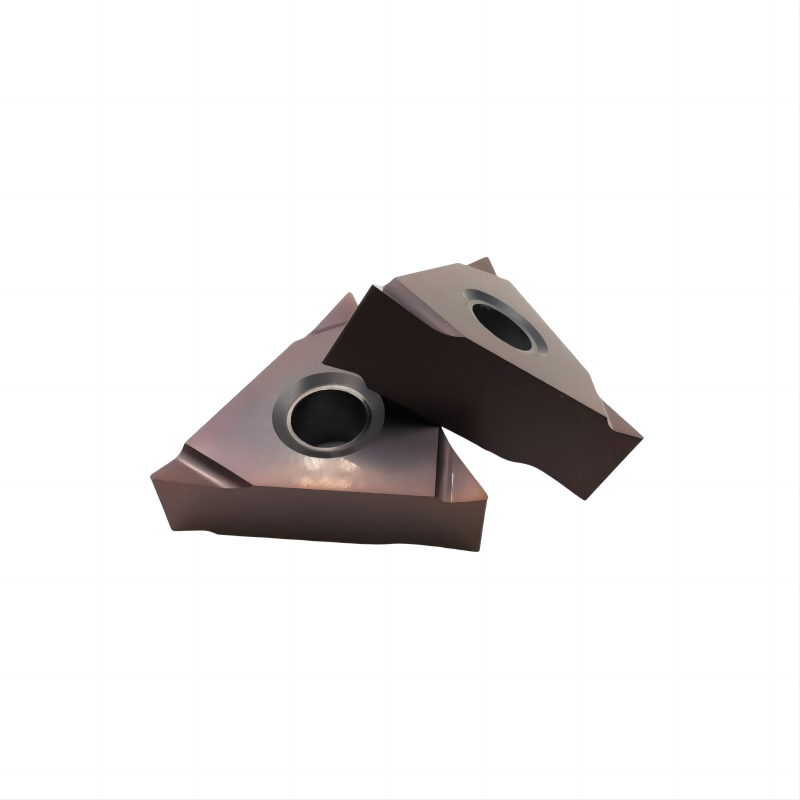

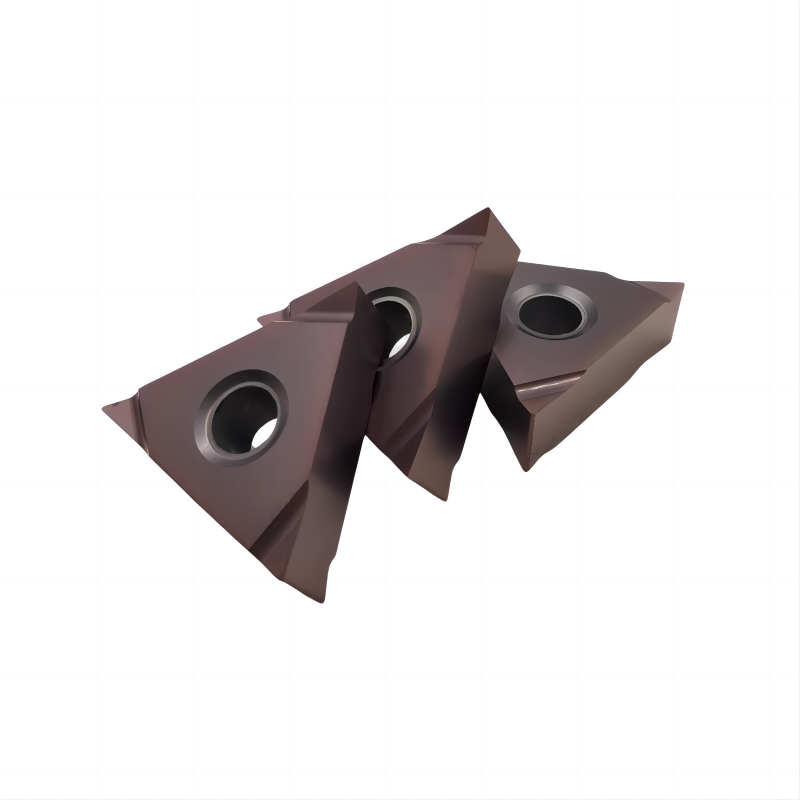

TNGG CARBIDE INSERTS

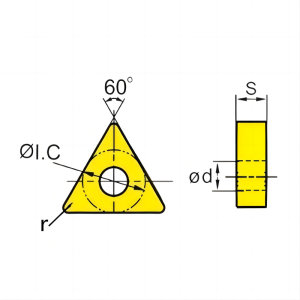

| Type | φI.C | S | φd | r |
| TNGG160402R-F | 9.525 | 4.76 | 3.81 | 0.2 |
| TNGG160404R-F | 9.525 | 4.76 | 3.81 | 0.4 |
| TNGG160408R-F | 9.525 | 4.76 | 3.81 | 0.8 |
| TNGG160412R-F | 9.525 | 4.76 | 3.81 | 1.2 |
| TNGG220404R-F | 12.7 | 4.76 | 5.16 | 0.4 |
| TNGG220408R-F | 12.7 | 4.76 | 5.16 | 0.8 |
| TNGG220412R-F | 12.7 | 4.76 | 5.16 | 1.2 |
| TNGG160402R-2G | 9.525 | 4.76 | 3.81 | 0.2 |
| TNGG160404R-2G | 9.525 | 4.76 | 3.81 | 0.4 |
| TNGG160408R-2G | 9.525 | 4.76 | 3.81 | 0.8 |
| TNGG160412R-2G | 9.525 | 4.76 | 3.81 | 1.2 |
| TNGG220404R-2G | 12.7 | 4.76 | 5.16 | 0.4 |
| TNGG220408R-2G | 12.7 | 4.76 | 5.16 | 0.8 |
| TNGG220412R-2G | 12.7 | 4.76 | 5.16 | 1.2 |
