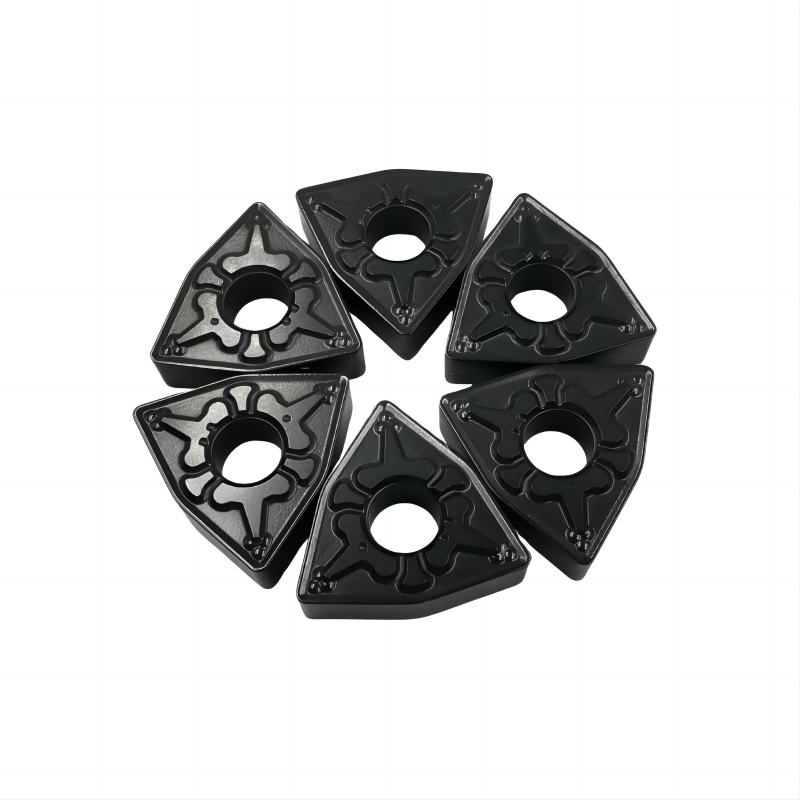

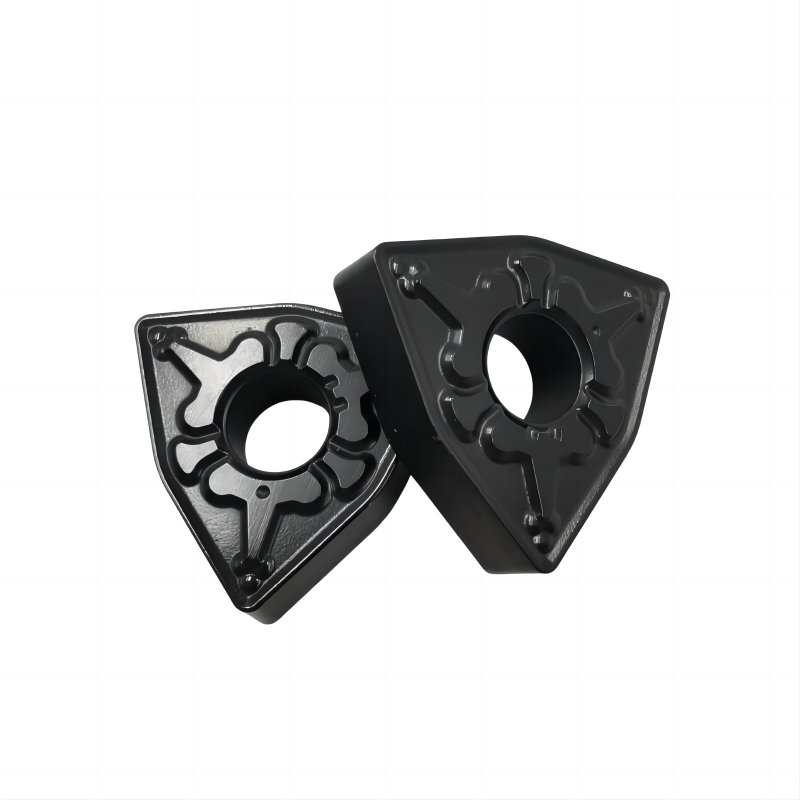

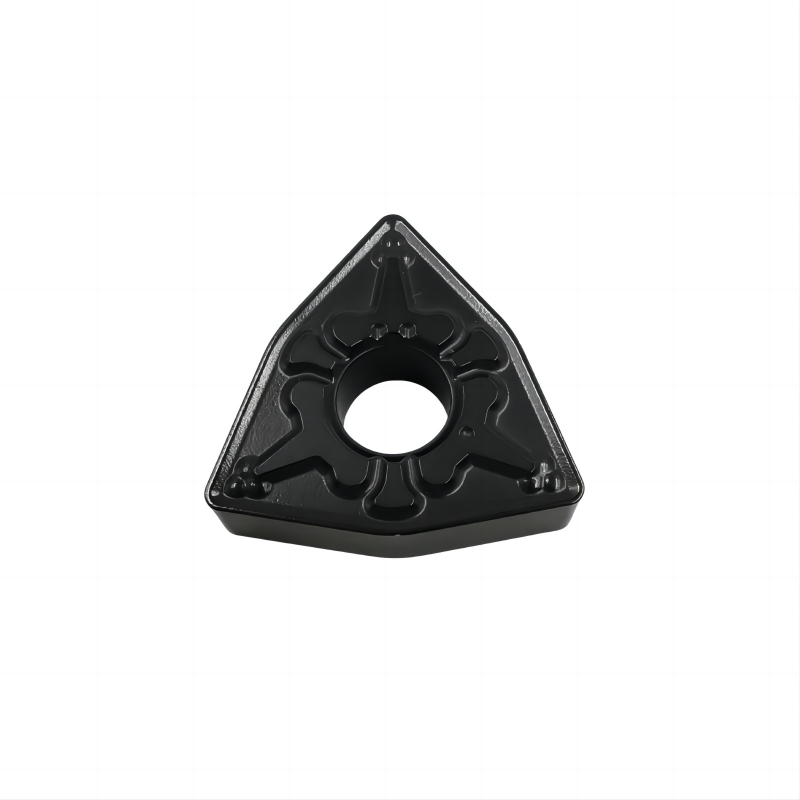

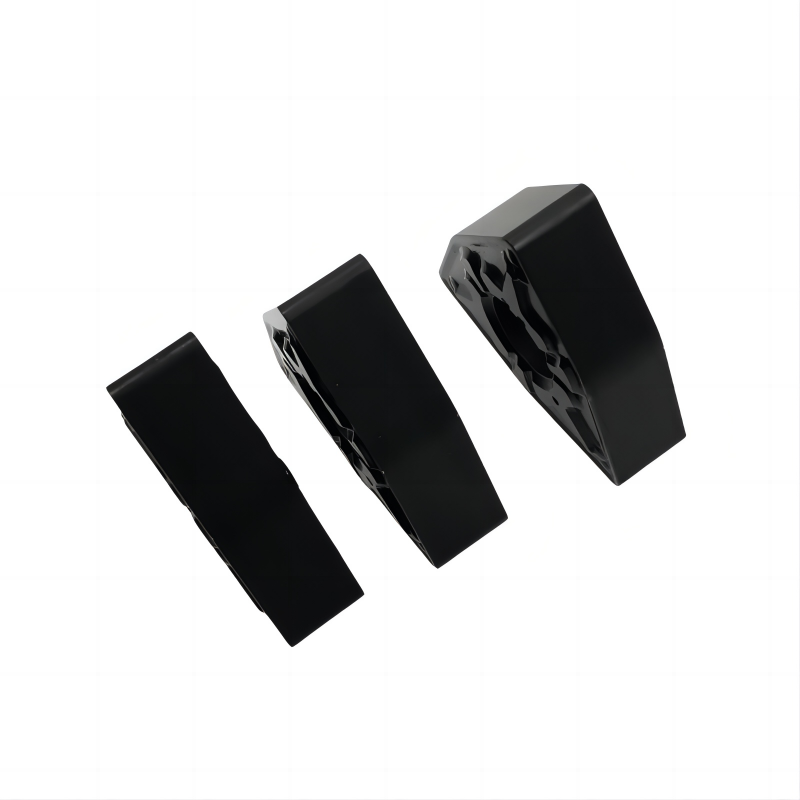

WNMG CARBIDE INSERTS

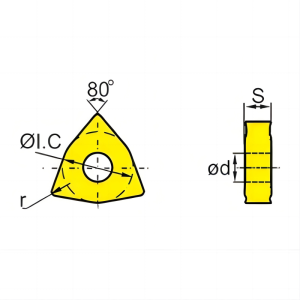

| Type | ΦI.C | S | Φd | r |
| WNMG060404-BTM | 9.525 | 4.76 | 3.81 | 0.4 |
| WNMG060408-BTM | 9.525 | 4.76 | 3.81 | 0.8 |
| WNMG080404-BTM | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-BTM | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-BTM | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404-BMA | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-BMA | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-BMA | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404R-S | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408R-S | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412R-S | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404L-S | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408L-S | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412L-S | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404-MS | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-MS | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080409-MS | 12.7 | 4.76 | 5.16 | 0.9 |
| WNMG080412-MS | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404-MM | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-MM | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-MM | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404-BM | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-BM | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-BM | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404 | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408 | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412 | 12.7 | 4.76 | 5.16 | 1.2 |
| WNMG080404-KM | 12.7 | 4.76 | 5.16 | 0.4 |
| WNMG080408-KM | 12.7 | 4.76 | 5.16 | 0.8 |
| WNMG080412-KM | 12.7 | 4.76 | 5.16 | 1.2 |
