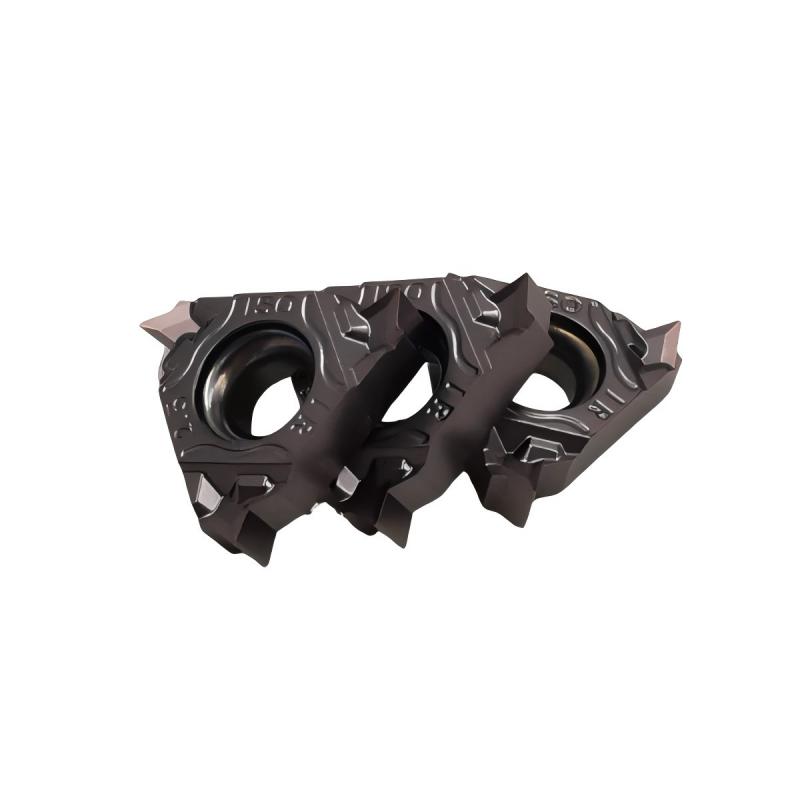

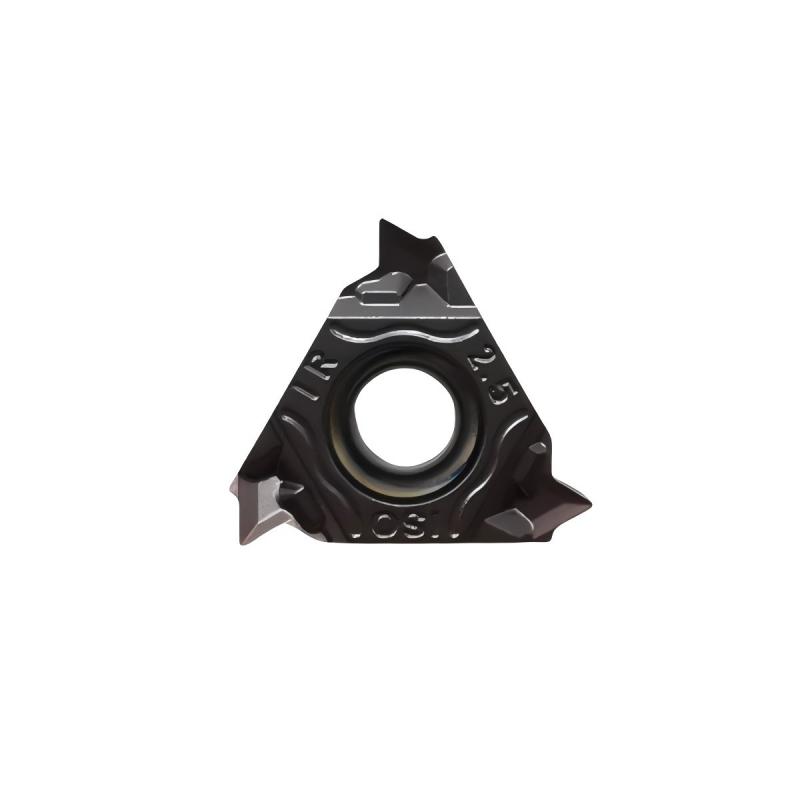

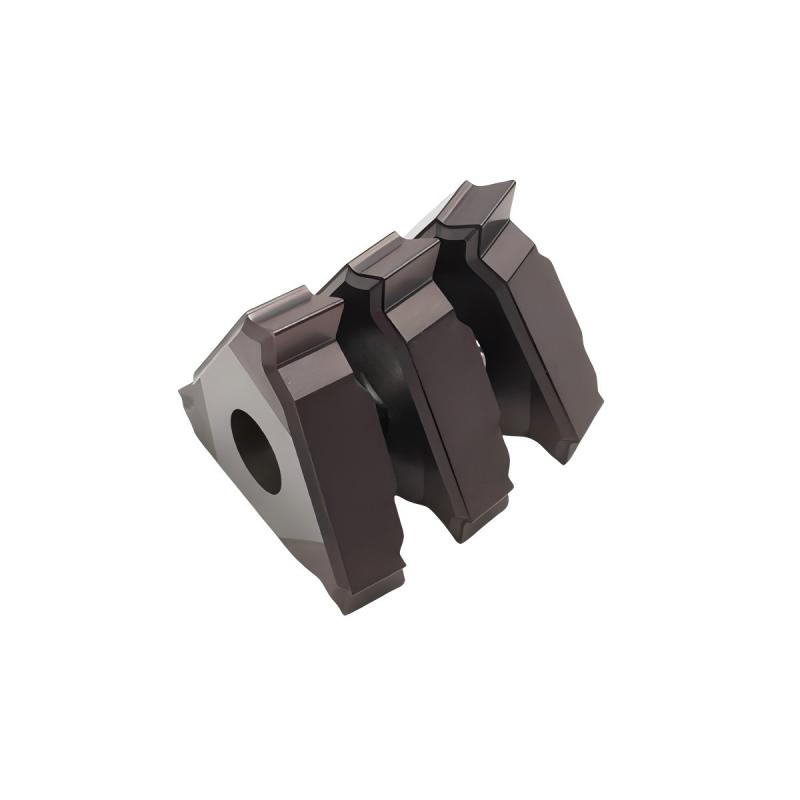

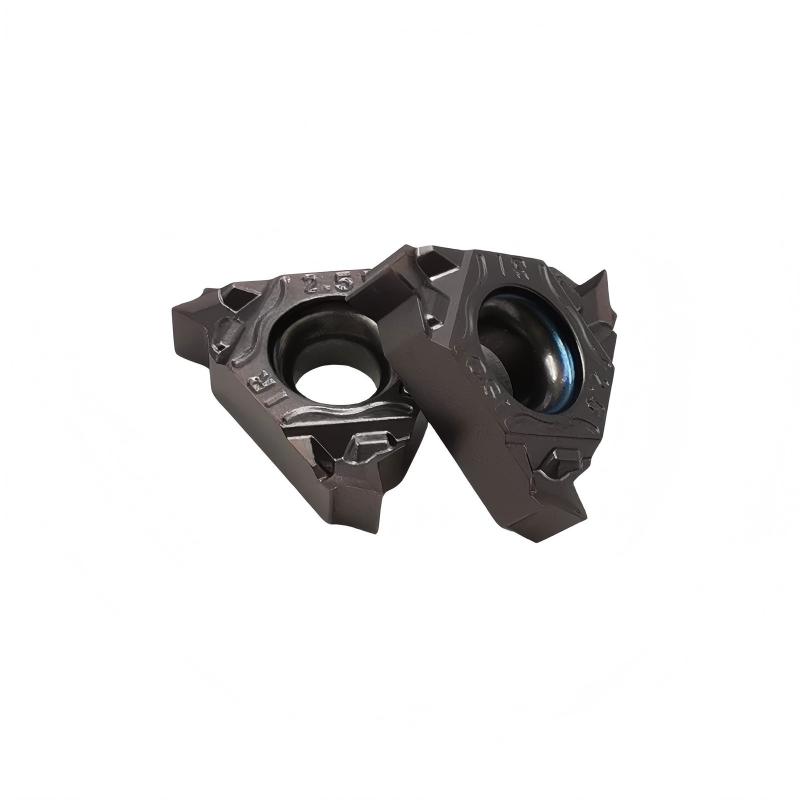

ISO THREADING INSERT (IR /IL )
| Type | ΦI.C | S | Φd | α° |
| 11IR100ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IR125ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IR150ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IR175ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IR200ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IR250ISO | 6.35 | 3.05 | 3.2 | 60° |
| 16IR100ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR125ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR150ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR175ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR200ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR250ISO | 9.525 | 3.52 | 4 | 60° |
| 16IR300ISO | 9.525 | 3.52 | 4 | 60° |
| 22IR350ISO | 12.7 | 4.65 | 5 | 60° |
| 22IR400ISO | 12.7 | 4.65 | 5 | 60° |
| 22IR450ISO | 12.7 | 4.65 | 5 | 60° |
| 22IR500ISO | 12.7 | 4.65 | 5 | 60° |
| 22IR600ISO | 12.7 | 4.65 | 5 | 60° |
| 11IL100ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IL125ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IL150ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IL175ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IL200ISO | 6.35 | 3.05 | 3.2 | 60° |
| 11IL250ISO | 6.35 | 3.05 | 3.2 | 60° |
| 16IL100ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL125ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL150ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL175ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL200ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL250ISO | 9.525 | 3.52 | 4 | 60° |
| 16IL300ISO | 9.525 | 3.52 | 4 | 60° |
| 22IL350ISO | 12.7 | 4.65 | 5 | 60° |
| 22IL400ISO | 12.7 | 4.65 | 5 | 60° |
| 22IL450ISO | 12.7 | 4.65 | 5 | 60° |
| 22IL500ISO | 12.7 | 4.65 | 5 | 60° |
| 22IL600ISO | 12.7 | 4.65 | 5 | 60° |
